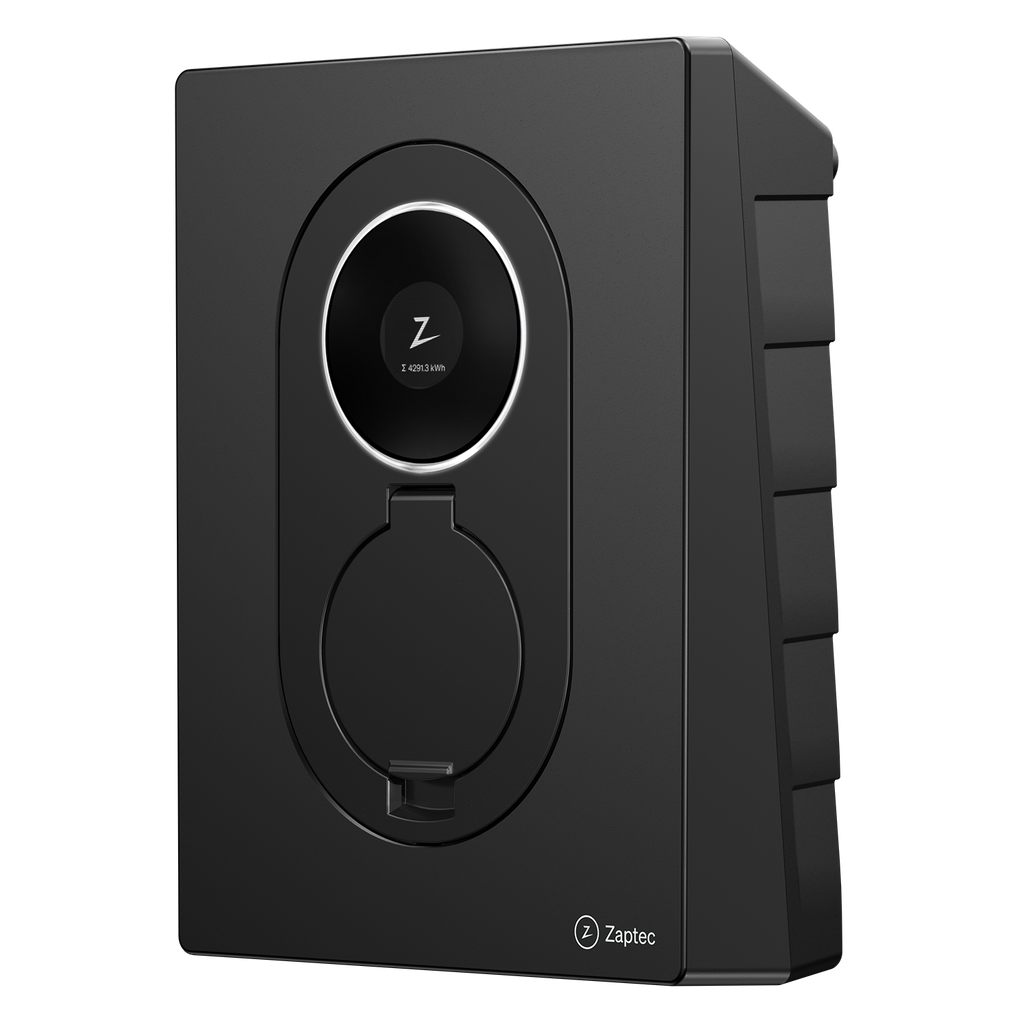

Zaptec Go 2 is an AC wall charging station designed for precision and adaptability. It features MID-certified metering for accurate energy monitoring, along with solar integration to optimize energy usage. With built-in 4G connectivity and OCPP management, Zaptec Go 2 offers a scalable and reliable charging solution for any EV. Backed by a 5-year guarantee, it's an investment in long-term performance and efficiency.

Technical information

Dimensions (mm)
H: 239 x W: 178 x D: 73

Weight
1.6 kg

Installation circuit
External circuit breaker and RCD protection is required in accordance with local regulations.

Installation network, voltages
TN, IT and TT
230 VAC ± 10%
400 VAC± 10%

Max. current and charging output
22 kW at 32 A / 3-phase (TN networks)
7.4 kW at 32 A / 1-phase (IT networks)
7.4 kW at 32 A / 1-phase (TN networks)

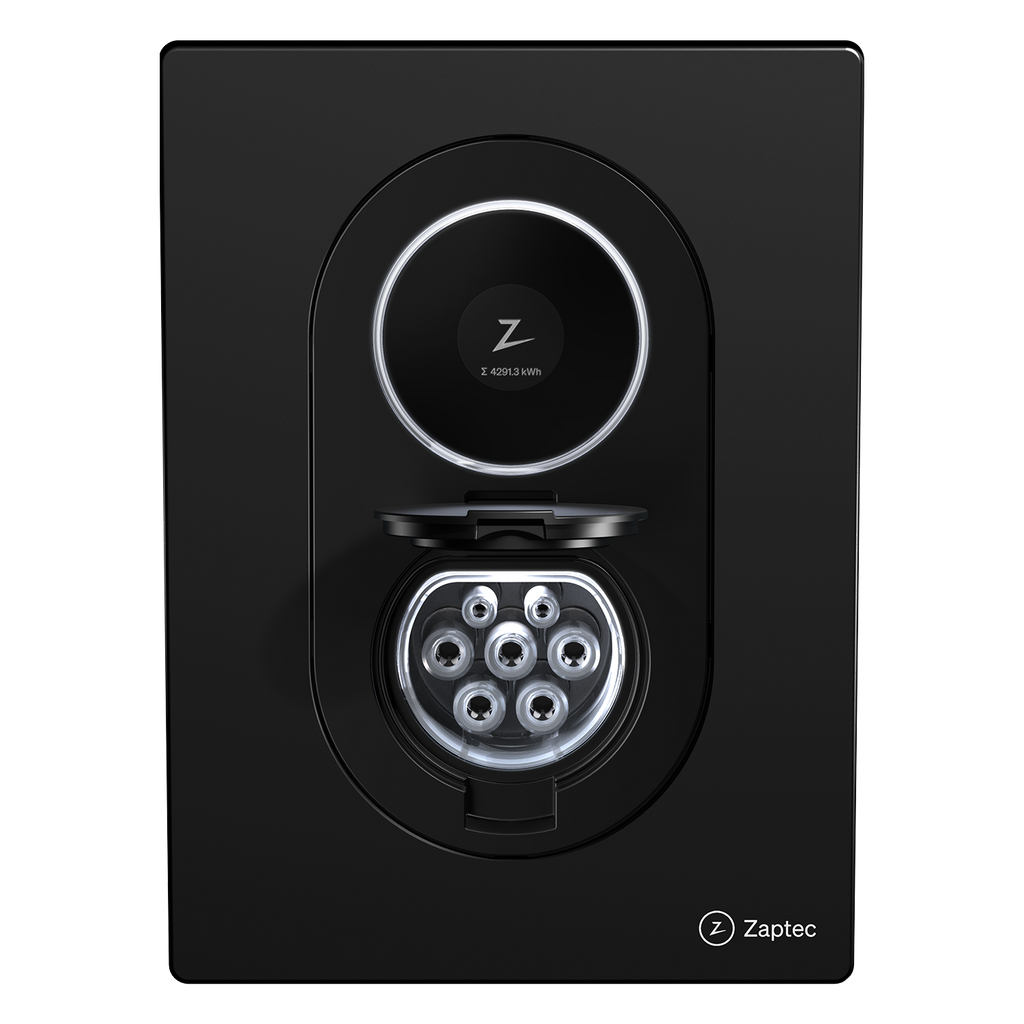

Charging socket
IEC 62196-2 Type 2 Female
Electronic lock, can be permanently locked by user

Integrated residual current protection
RDC-DD (6 mA DC) according to IEC 62955
Electronic, automatic reset by replugging Type 2 cable

Energy metering
Integrated energy meter
Certified MID Class B
EN 50470-1: 2006, EN 50470-3: 2006

Communications interface and cloud connection/network
4G LTE Cat 1
WiFi 2.4 GHz, 802.11 b/g/n

HMI, Identification and configuration
Bluetooth Low Energy (BLE 4.2)
RFID reader ISO/IEC 14443 Type-A
13.56 MHz (MIFARE Classic, MIFARE DESFire)
Backlit IPS LCD screen and RGBW LED circle for device status
2.5 W power usage at standby
ISO 15118 Hardware support

Standards and approvals
CE compliant with Radio Equipment Directive 2014/53/EU, RoHS directive 2011/65/EU, EN IEC 61851-1, IEC 61439-7 and IEC 62955

Temperature range
–30°C to +50°C

Degree of protection
IP54, indoor and outdoor use
IK10 impact protection
UL94 5VB flammability rating
UV resistant

Electrical protection
Protection class I (4 kV AC and 6 kV impulse, insulation)
Overvoltage category III (4 kV)

Software interfaces available
Zaptec App
Third-party integration alternatives (API, Webhooks)
OCPP 1.6J cloud-to-cloud or native on-device

For more information, refer to https://zaptec.com/ocpp
